Intel® Xeon® Processor Scalable Family (Ice Lake)

This new generation of Intel® Xeon® scalable processors is a significant advancement over the previous generation. Ice Lake offers more cores, more clock, more memory and faster memory.

Plus this 3rdgeneration is workload optimized with built-in AI and Crypto acceleration, enhanced security and PCI-e Gen 4 support.

Ice Lake was launched in April 2021 and delivers high levels of compute density, scalability, and storage and memory capacity and feature multiple enhancements for HPC workloads.

The new processors deliver advanced performance with up to 40 cores and significant increases in memory and I/O bandwidth (with 8 memory channels and 64PCIe lanes) to handle extremely large compute- and data-intensive workloads.

Ice Lake processors offer support for Intel® OptaneTM DC persistent memory and enhanced DDR4 performance support, which enables more value to be extracted from larger datasets than was previously possible. It also allows for snew data-intensive use cases.

On this page you will meet the next generation of processors. We’re highlighting the key benefits and features, the full SKU list and our systems that support Ice Lake.

Register to attend our Ice Lake Webinar

Advanced Clustering Technologies will be hosting a webinar about our Ice Lake-based systems. Register here to save your seat at this virtual event:

Intel® Xeon® Processor SKU list

Filter list

Cores
to
Speed
to
Max TDP
CPUs with TDP marked in RED are high-wattage and available in limited configurations.
Gen Level Model Cores Speed Cache TDP Mem Speed DP FLOPs / cycle Max RAM

Intel® Xeon® Ice Lake Systems

ACTserv x2310c

2U, dual processor with 2x GPUs

  • CPU

    2x up to 40 core Intel Xeon (Ice Lake)

  • MEMORY

    32x DDR4 3200MHz DIMM sockets (Max: 4 TB)

  • STORAGE

    8x 2.5" & 2x M.2 SSD,NVMe drive bays (Max: 2 TB)

  • ACCELERATORS

    Max 2x NVIDIA Tesla accelerators

  • CONNECTIVITY

    Onboard 1x 10Gb NICs & Optional: 10GbE, 40GbE, InfiniBand, 100GbE

  • DENSITY

    2U rackmount chassis with redundant power

ACTserv x2320

2U, dual processor 12x HDD drive storage/head node

  • CPU

    2x up to 40 core Intel Xeon (Ice Lake)

  • MEMORY

    32x DDR4 3200MHz DIMM sockets (Max: 4 TB)

  • STORAGE

    12x 2.5" & 2x M.2 SSD,NVMe drive bays (Max: 200 TB)

  • CONNECTIVITY

    Onboard 4x 1Gb NICs & Optional: 10GbE, 40GbE, InfiniBand, 100GbE

  • DENSITY

    2U rackmount chassis with redundant power

ACTserv x2310

2U, dual processor 8x SSD drive storage/head node

  • CPU

    2x up to 40 core Intel Xeon (Ice Lake)

  • MEMORY

    32x DDR4 3200MHz DIMM sockets (Max: 4 TB)

  • STORAGE

    8x 2.5" & 2x M.2 SSD,NVMe drive bays (Max: 2 TB)

  • CONNECTIVITY

    Onboard 1x 10Gb NICs & Optional: 10GbE, 40GbE, InfiniBand, 100GbE

  • DENSITY

    2U rackmount chassis with redundant power

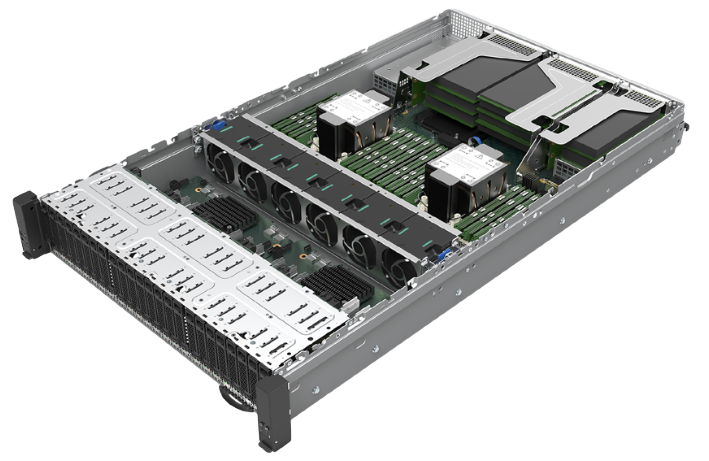

ACTserv x2350

2U, dual processor 24x SSD drive storage/head node

  • CPU

    2x up to 40 core Intel Xeon (Ice Lake)

  • MEMORY

    32x DDR4 3200MHz DIMM sockets (Max: 4 TB)

  • STORAGE

    24x 2.5" SSD,NVMe drive bays (Max: 2 TB)

  • CONNECTIVITY

    Onboard 4x 1Gb NICs & Optional: 10GbE, 40GbE, InfiniBand, 100GbE

  • DENSITY

    2U rackmount chassis with redundant power

ACTserv x1310

2U, dual processor 4x SSD drive storage/head node

  • CPU

    2x up to 40 core Intel Xeon (Ice Lake)

  • MEMORY

    32x DDR4 3200MHz DIMM sockets (Max: 4 TB)

  • STORAGE

    4x 2.5" & 2x M.2 SSD,NVMe drive bays (Max: 2 TB)

  • CONNECTIVITY

    Onboard 4x 1Gb NICs & Optional: 10GbE, 40GbE, InfiniBand, 100GbE

  • DENSITY

    1U rackmount chassis with redundant power

ACTblade x310

2U, 4 node air-cooled compute nodes

  • CPU per node

    2x up to 40 core Intel Xeon (Ice Lake)

  • MEMORY per node

    16x DDR4 3200MHz DIMM sockets (Max: 2 TB)

  • STORAGE per node

    2x M.2 SSD,NVMe drive bays (Max: 2 TB)

  • CONNECTIVITY per node

    Onboard 1x 10Gb NICs & Optional: 10GbE, 40GbE, InfiniBand, 100GbE

  • DENSITY

    Compute Block multi-node rackmount chassis with redundant power

ACTblade x350

2U, 2 storage nodes

  • CPU per node

    2x up to 40 core Intel Xeon (Ice Lake)

  • MEMORY per node

    16x DDR4 3200MHz DIMM sockets (Max: 2 TB)

  • STORAGE per node

    2x M.2 & 16x E1.L ruler NVMe drive bays (Max: 240 TB)

  • CONNECTIVITY per node

    Onboard 1x 10Gb NICs & Optional: 10GbE, 40GbE, InfiniBand, 100GbE

  • DENSITY

    Compute Block multi-node rackmount chassis with redundant power

ACTblade x310-L

2U, 4 node liquid-cooled compute nodes

  • CPU per node

    2x up to 40 core Intel Xeon (Ice Lake)

  • MEMORY per node

    16x DDR4 3200MHz DIMM sockets (Max: 2 TB)

  • STORAGE per node

    2x M.2 SSD,NVMe drive bays (Max: 2 TB)

  • CONNECTIVITY per node

    Onboard 1x 10Gb NICs & Optional: 10GbE, 40GbE, InfiniBand, 100GbE

  • DENSITY

    Compute Block multi-node rackmount chassis with redundant power

ACTblade x320

2U, 2 node management nodes

  • CPU per node

    2x up to 40 core Intel Xeon (Ice Lake)

  • MEMORY per node

    16x DDR4 3200MHz DIMM sockets (Max: 2 TB)

  • STORAGE per node

    2x 2.5" & 2x M.2 NVMe drive bays (Max: 16 TB)

  • CONNECTIVITY per node

    Onboard 1x 10Gb NICs & Optional: 10GbE, 40GbE, InfiniBand, 100GbE

  • DENSITY

    Compute Block multi-node rackmount chassis with redundant power

ACTblade x380c

2U node with Accelerators/GPUs

  • CPU

    2x up to 40 core Intel Xeon (Ice Lake)

  • MEMORY

    16x DDR4 3200MHz DIMM sockets (Max: 2 TB)

  • STORAGE

    2x 2.5" & 2x M.2 NVMe drive bays (Max: 16 TB)

  • ACCELERATORS

    Max 4x NVIDIA Tesla accelerators

  • CONNECTIVITY

    Onboard 1x 10Gb NICs & Optional: 10GbE, 40GbE, InfiniBand, 100GbE

  • DENSITY

    Compute Block rackmount chassis with redundant power

Intel and Xeon are registered trademarks of Intel Corporation in the United States and other countries.
