A newer version of this model is now available
This model has been replaced by a newer model, the ACTblade x110.
  • CPU

    2x up to 44 core Intel Xeon E5v4 (Broadwell)


    16x DDR4 2400MHz DIMM sockets (Max: 512 GB)


    3x 3.5" & 4x 2.5" SATA,SSD drive bays (Max: 6.4 TB)


    Onboard 2x 1Gb NICs & Optional: 10GbE, 40GbE, InfiniBand, OmniPath, 100GbE

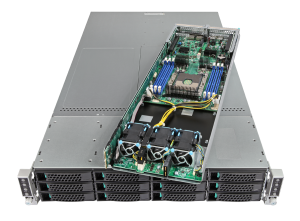

    Compute Block rackmount chassis

Discounts are available for volume, education and government customers. Request a quote for product and pricing details.

Enclosure options

The above system is only the node, you will need 1 enclosure for every 4 systems as well.

  • product-img
    Pinnacle Compute Block 16-bay Enclosure

    Required enclosure for the HPC compute block nodes.

  • product-img
    Pinnacle Compute Block 12-bay Enclosure

    Required enclosure for the HPC compute block nodes.


Technical Specifications

In the box
  • HPC Compute Node
  • Rackmount hardware
  • 110V or 208V power cord
  • Documentation
  • 2x Intel Xeon E5-2600v4 series processors
  • Intel "Broadwell" microarchitecture
  • Integrated memory controller and 2x QPI interconnects per socket
  • 14nm process technology
  • Intel C612 series
  • 2400MHz DDR4 memory
  • 16x DIMM sockets for support up to 512GB
  • 3x 3.5" SATA drive bay or 4x hot-swap 2.5" SATA drive bays
  • Support RAID level 0-6 with Linux software RAID (using 2.5" drives)
  • Drives shock mounted to prevent vibration related failures
  • Support for high-performance solid state drives (SSD)
  • Integrated IPMI 2.0 module
  • Integrated management controller providing iKVM and remote disk emulation
I/O Connections
  • 1x open PCI-e 3.0 expansion slot running at 16x
  • 2x independent 1Gb RJ-45 ethernet interfaces
  • 4x USB ports
  • 1x VGA port
  • Optional FDR (56Gb/s) Infiniband QSFP connector
Size & Weight
  • Height: 1.75 inches (1U)
  • Width: 6.8 inches
  • Depth: 18.9 inches
  • Weight: Base config 20lbs, varies based on configuration
Operating System
  • RedHat Linux 6 and newer (most other distributions supported, call for details)
