CPU
1x up to 128 core AMD EPYC (Genoa)
-
MEMORY
24x DDR5 4800MHz DIMM sockets (Max: 3 TB)
-
STORAGE
24x 3.5" & 24x 2.5" SAS,SATA drive bays (Max: 792 TB)
-
CONNECTIVITY
Onboard 2x 10Gb NICs & Optional: 10GbE, InfiniBand, 50GbE/100GbE/200GbE
-
DENSITY

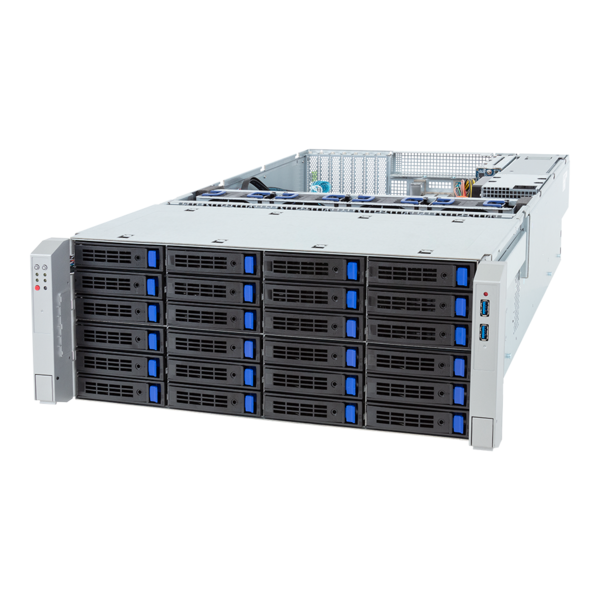

4U rackmount chassis with redundant power
Discounts are available for volume, education and government customers. Request a quote for product and pricing details.
Technical Specifications
In the box
- ACTserv e4401 system
- Documentation
Processor
- 1x AMD EPYC processors
- AMD Genoa microarchitecture
Chipset
- AMD Genoa
Memory
- 4800MHz DDR5 memory
- 24x DIMM sockets
Storage

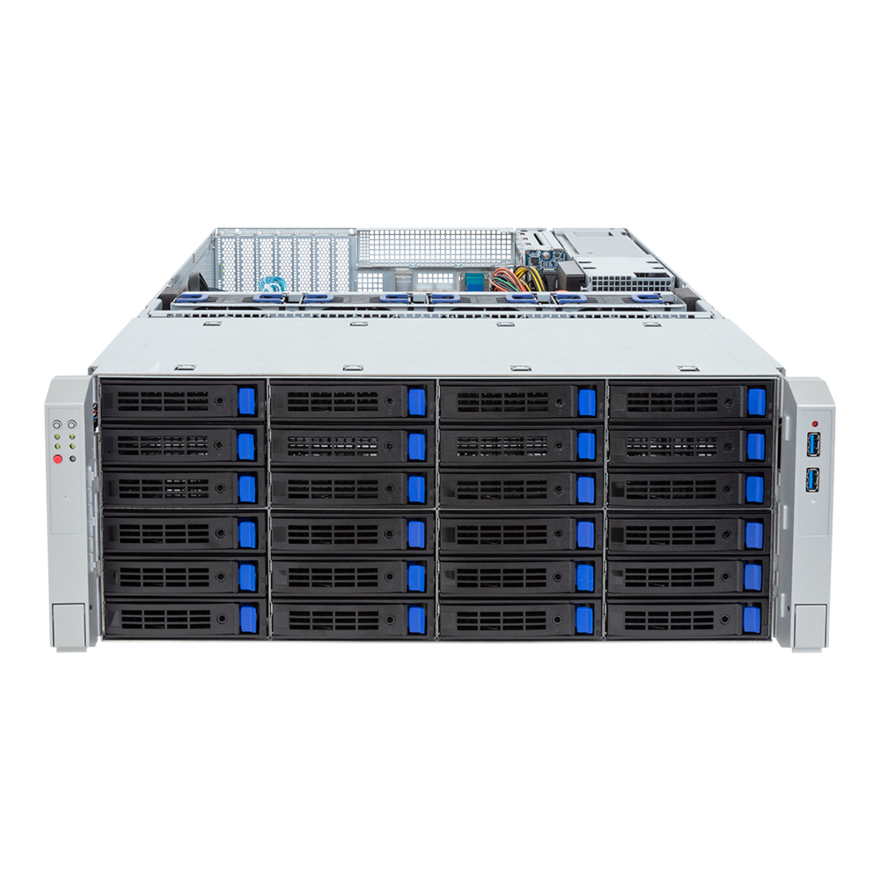

- 24 x 3.5"/2.5" SATA/SAS hot-swappable bays on the front side

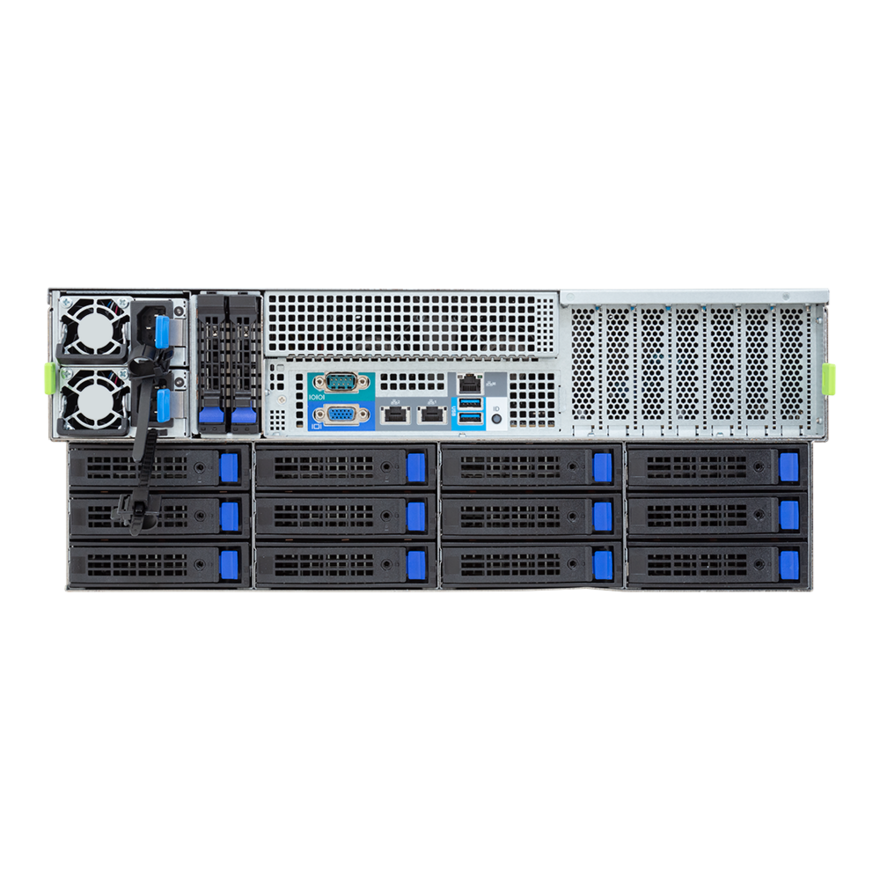

- 12 x 3.5"/2.5" SATA/SAS hot-swappable bays on the rear side
- 2 x 2.5" SATA/SAS bays on the rear side for boot drives
Management
- Integrated IPMI 2.0 module
- Integrated management controller providing iKVM and remote disk emulation
Electrical requirements
- Dual 1600W 80 PLUS Titanium redundant power supply
