A newer version of this model is now available
This model has been replaced by a newer model, the ACTserv e2220.
  • CPU

    2x up to 32 core AMD EPYC (Naples)

  • MEMORY

    32x DDR4 2666MHz DIMM sockets (Max: 1.5 TB)

  • STORAGE

    24x 2.5" NVMe drive bays (Max: 192 TB)

  • CONNECTIVITY

    Onboard 2x 1Gb NICs & Optional: 10GbE, 40GbE, InfiniBand, 100GbE

  • DENSITY

    2U rackmount chassis with redundant power

Discounts are available for volume, education and government customers. Request a quote for product and pricing details.

Technical Specifications

In the box
  • ACTserv e2150 system
  • Documentation
Processor
  • 2x AMD EPYC 7001 series processors
  • AMD EPYC "Naples" microarchitecture
Chipset
  • AMD EPYC SoC
Memory
  • 2666 MHz DDR4 memory
  • 32x DIMM sockets for support up to 1.5TB
Storage
  • 24x 2.5" hot-swap NVMe drive bay and 2x rear hot-swap 2.5" SATA drive bays
  • Support RAID level 0,1,10,5,6 with Linux software RAID or optional hardware RAID controller
  • Support for high-performance NVMe solid state drives (SSD)
Management
  • Integrated IPMI 2.0 module
  • Integrated management controller providing iKVM and remote disk emulation

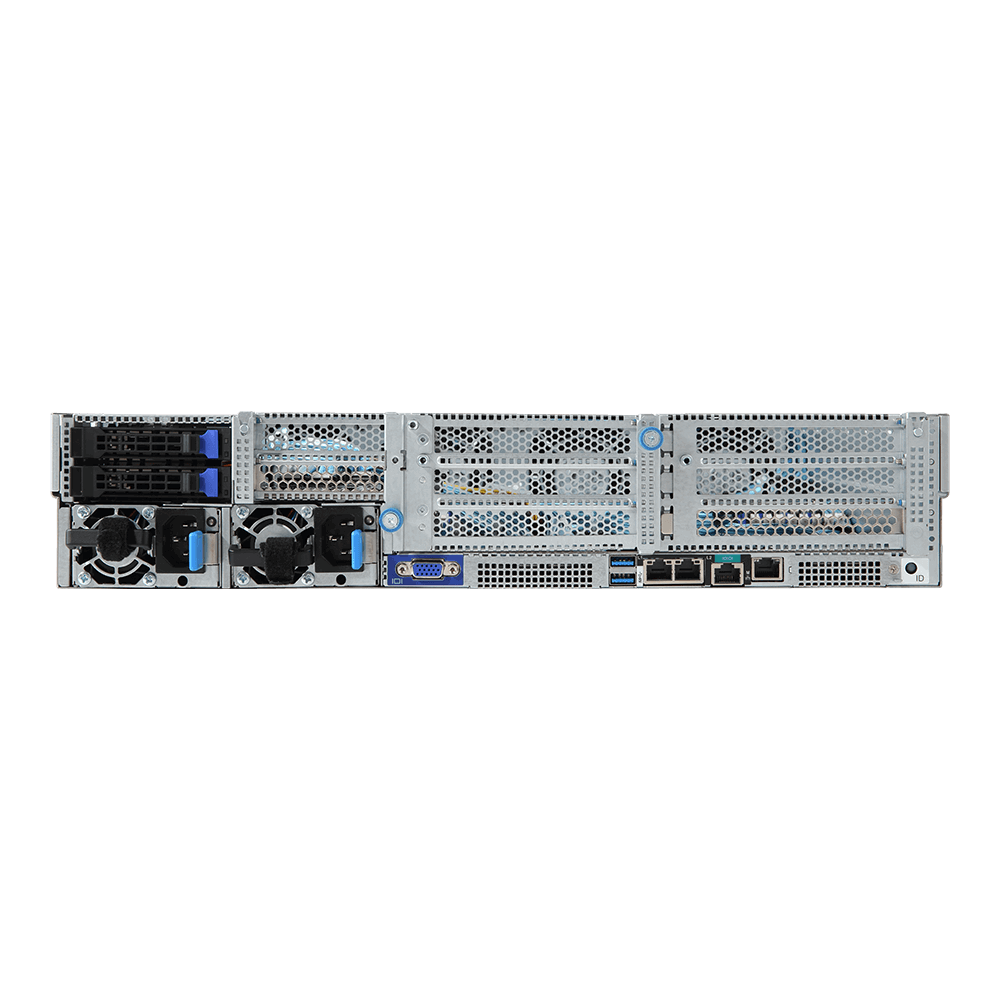

I/O Connections
  • 2x open PCI-e 3.0 expansion slots running at 16x; 1x open PCI-e 3.0 expansion slots running at 8x
  • 2x independent 1GBaseT Ethernet interfaces
  • 5x USB 3.0 ports
  • 1x VGA port
Electrical requirements
  • High-efficiency power supply (greater than 90%)
  • Output power: redundant 1200W
  • Universal input voltage 100V to 240V
  • Frequency: 50Hz to 60Hz, single phase
Size & Weight
  • Height: 3.5 inches (2U)
  • Width: 19 inches
  • Depth: 26 inches
  • Weight: Base config 50lbs, varies based on configuration
Operating System
  • RedHat Linux 7 and newer (most other distributions supported, call for details)
