MSRP price as configured. $0.00
  • CPU

    2x up to 128 core AMD EPYC Genoa/Bergamo

  • MEMORY

    24x DDR5 4800MHz DIMM sockets (Max: 3 TB)

  • STORAGE

    4x 3.5"SATA,NVMe drive bays (Max: 88 TB)

  • DENSITY

    1U rackmount chassis with redundant power

Discounts are available for volume, education and government customers. Request a quote for product and pricing details.

Additional server options

The AMD Genoa/Bergamo ACTserv family consists of other node types including 1U storage systems

  • product-img
    ACTserv e1410

    1U, dual processor 4x SSD drive storage/head node

    Configure
  • product-img

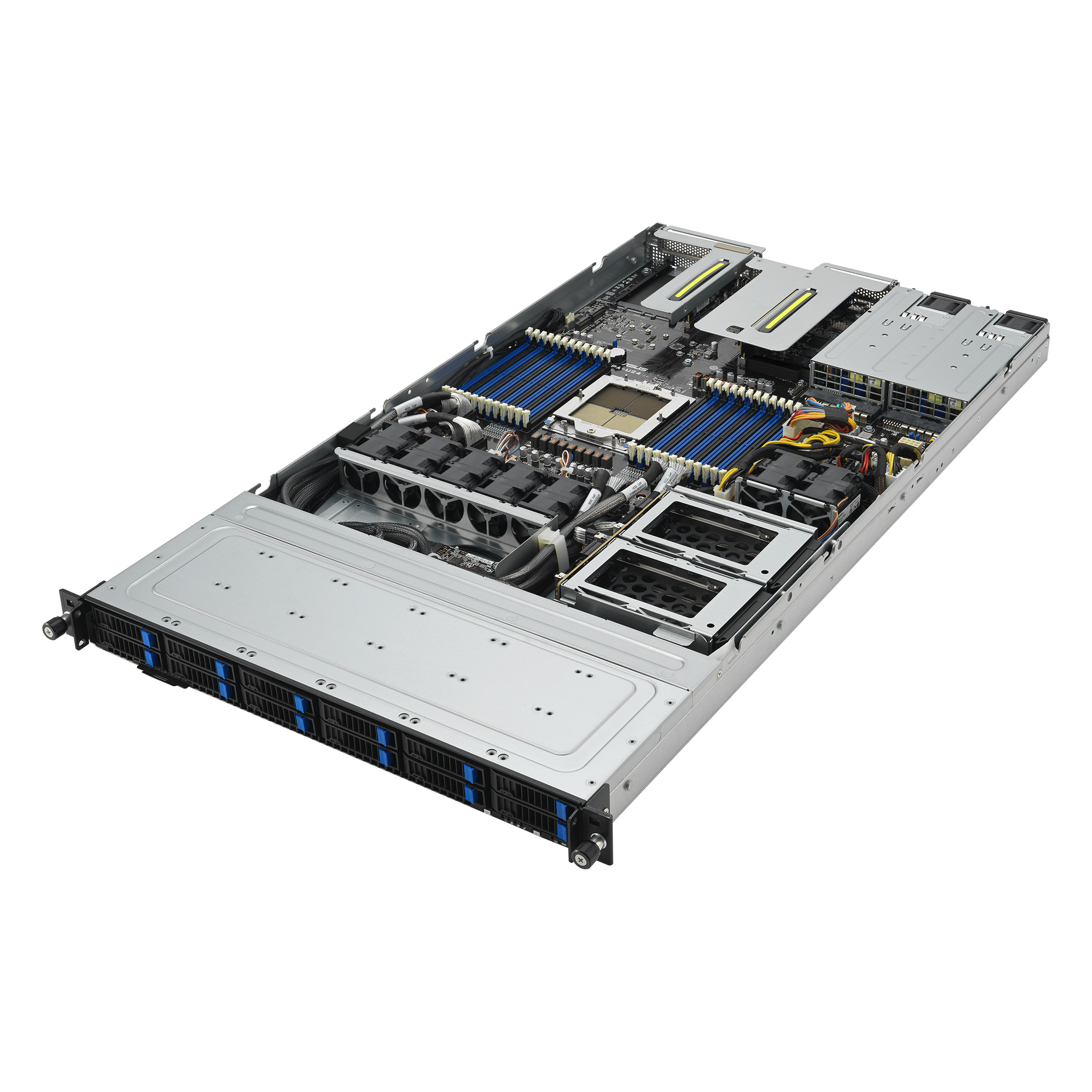

    ACTserv e1401

    1U, single processor 12x SATA drive storage/head node

    Configure

Technical Specifications

In the box
  • ACTserv e1416 system
  • Documentation
Processor
  • 2x AMD Genoa/Bergamo series processors
  • AMD Genoa/Bergamo microarchitecture
Chipset
  • AMD Genoa/Bergamo chipset
Memory
  • 4800MHz DDR5 memory
  • 24x DIMM sockets for support up to 3TB
Storage
  • 4x 3.5" SATA/U.2 NVMe drives
Management
  • Integrated IPMI 2.0 module
  • Integrated management controller providing iKVM and remote disk emulation

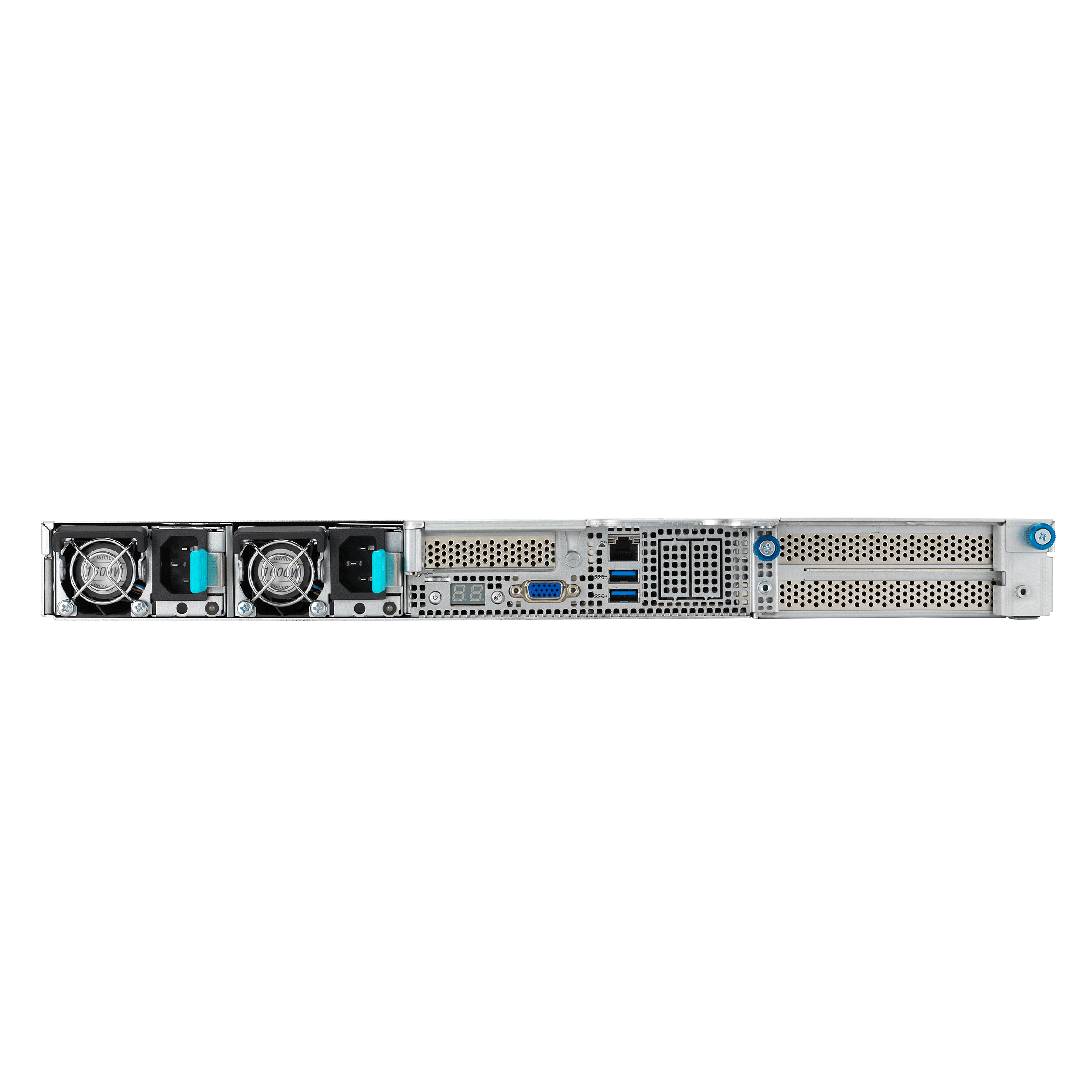

I/O Connections
  • 2x PCI-e Gen5 x16 & 1x Gen5 x8 PCI-e slots
  • 2x Rear USB ports
  • 1x VGA
  • 1x Dedicated RJ45 IPMI ethernet
Electrical requirements
  • High-efficiency power supply (greater than 90%)
  • Output power: Single or Dual 1600W
  • Universal input voltage 100V to 208V (minimum required to run at full capacity)
  • Frequency: 50Hz to 60Hz, single phase
Operating System
  • RedHat Linux 8 and newer (many other distributions supported, call for details)
