A newer version of this model is now available
This model has been replaced by a newer model, the ACTstation x150.
  • CPU

    2x up to 44 core Intel Xeon E5v4 (Broadwell)

  • MEMORY

    8x DDR4 2400MHz DIMM sockets (Max: 256 GB)

  • STORAGE

    8x 3.5" & 8x 2.5" SATA,SSD drive bays (Max: 80 TB)

  • ACCELERATORS

    Max 2x NVIDIA Quadro, NVIDIA GTX accelerators

  • CONNECTIVITY

    Onboard 2x 1Gb NICs & Optional: 10GbE, 40GbE, InfiniBand, OmniPath, 100GbE

  • DENSITY

    Desktop chassis

Discounts are available for volume, education and government customers. Request a quote for product and pricing details.

Technical Specifications

In the box
  • Workstation system
  • Optional keyboard and optical mouse
  • 110V or 208V power cord
  • Documentation
Processor
  • Uses the latest dual Intel® Xeon® e5-2600v4 processor with multiple GPU or Intel® Xeon® Phi support
Accelerators
  • Space for up to 2x GPUs or Xeon Phi
Chipset
  • Intel C610 series
Memory
  • 2400MHz DDR4 memory
  • 8x DIMM sockets for support up to 256GB
Storage
  • 8x 3.5" / 2.5" drive bays
  • Support for high-performance solid state drives (SSD)
  • Support RAID level 0,1,10,5,6 with Linux software RAID or optional hardware RAID controller
  • 2x 5.25" external drive bay for CD/DVD drive
Management
  • Integrated IPMI 2.0 module
  • Integrated management controller providing iKVM and remote disk emulation

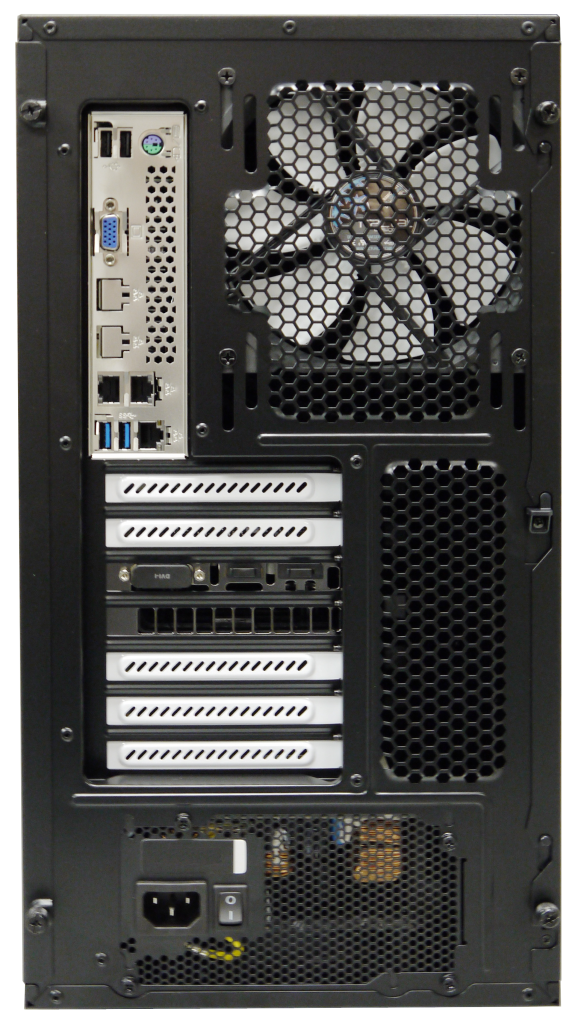

I/O Connections
  • 2x open PCI-e 3.0 expansion slots running at 16x; 2x open PCI-e 3.0 expansion slots running at 8x
  • 2x independent 1Gb RJ-45 ethernet interfaces

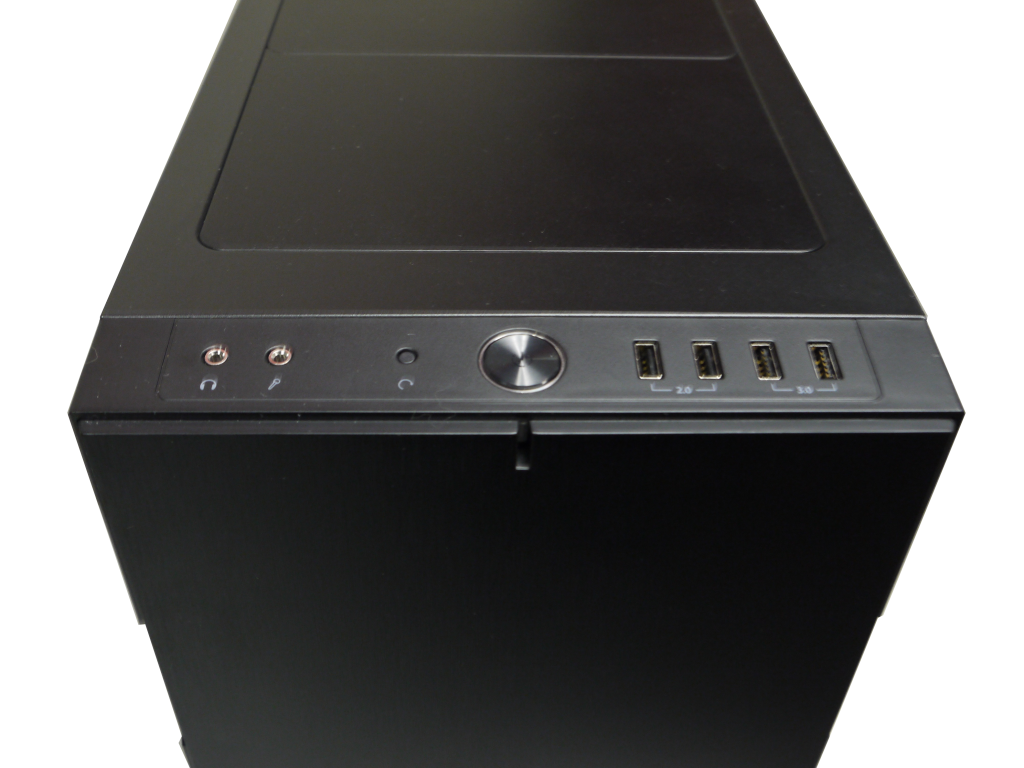

  • 4x USB 3.0 ports, 4x USB 2.0 ports
  • 1x VGA port
Electrical requirements
  • High-efficiency power supply (greater than 80%)
  • Output power: 860W power supply
  • Universal input voltage 100V to 240V
  • Frequency: 50Hz to 60Hz, single phase
Size & Weight
  • Height: 17.7 inches
  • Width: 9.1 inches
  • Depth: 20.5 inches
  • Weight: Base config 50lbs, varies based on configuration
Operating System
  • RedHat Linux 6 and newer (most other distributions supported, call for details)
  • Windows 2008 and newer
