CPU
2x up to 256 core Intel Xeon 6 (Granite Rapids AP)
-
MEMORY
24x DDR5 6400MHz DIMM sockets (Max: 3 TB)
-
STORAGE

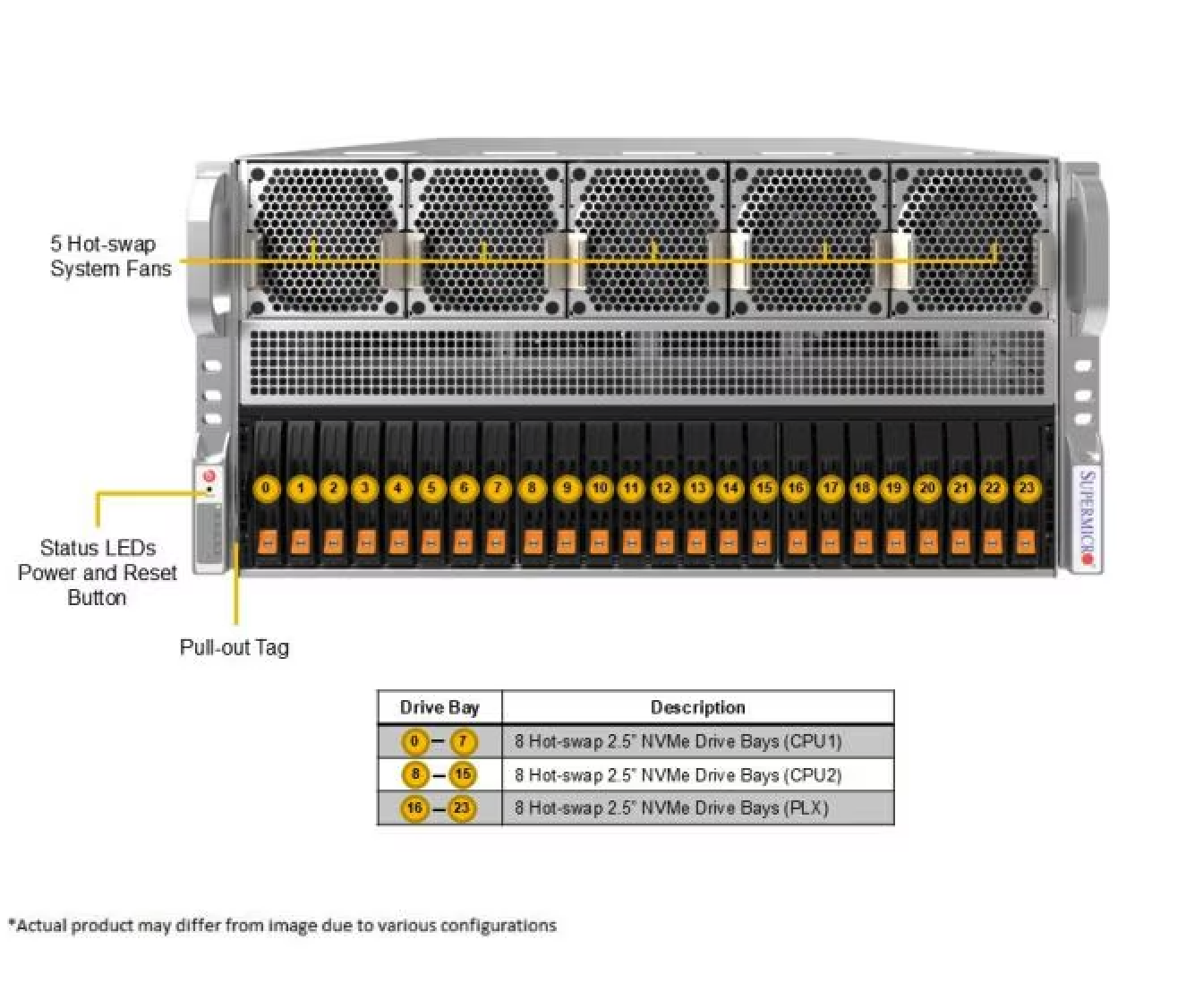

24x 2.5" NVMe drive bays (Max: 1475 TB)
-
ACCELERATORS
Max 8x NVIDIA Tesla, NVIDIA RTX accelerators
-
CONNECTIVITY
Onboard 2x 10Gb NICs & Optional: 10GbE, InfiniBand, OmniPath, 25GbE/100GbE/200GbE
-
DENSITY
4U rackmount chassis with redundant power
Discounts are available for volume, education and government customers. Request a quote for product and pricing details.
Technical Specifications
In the box
- ACTserv x5510c system
- Documentation
Processor
- 2x Intel Xeon 6 Granite Rapids AP series processors
Accelerators
- L40S, RTX Pro 6000 SE, H200 NVL
Chipset
- System on chip
Memory
- 3TB - 24x 128GB DDR5 6400MHz
Storage
- 24x 2.5" NVMe hot-swappable SSD bays
Management
- Remote iKVM with in-band management
Electrical requirements
- 3+3 Redundant (90+%)
Size & Weight
- Height: 17 inches (4U)
- Width: 7 inches
- Depth: 35 inches
- Weight: Base config 47.5 lbs.; varies based on configuration
Operating System
- RedHat Linux 8 and newer (most other distributions supported, call for details)
