A newer version of this model is now available
This model has been replaced by a newer model, the ACTserv x2280c.
-
CPU
2x up to 28 core Intel Xeon SP (Cascade Lake)
-
MEMORY
24x DDR4 2933MHz DIMM sockets (Max: 1.5 TB)
-
STORAGE
14x 2.5" SATA,SSD drive bays (Max: 53.76 TB)
-
ACCELERATORS
Max 8x NVIDIA Tesla, NVIDIA Quadro, NVIDIA GTX accelerators
-
CONNECTIVITY
Onboard 2x 10Gb NICs & Optional: 10GbE, 40GbE, InfiniBand, OmniPath, 100GbE
-
DENSITY

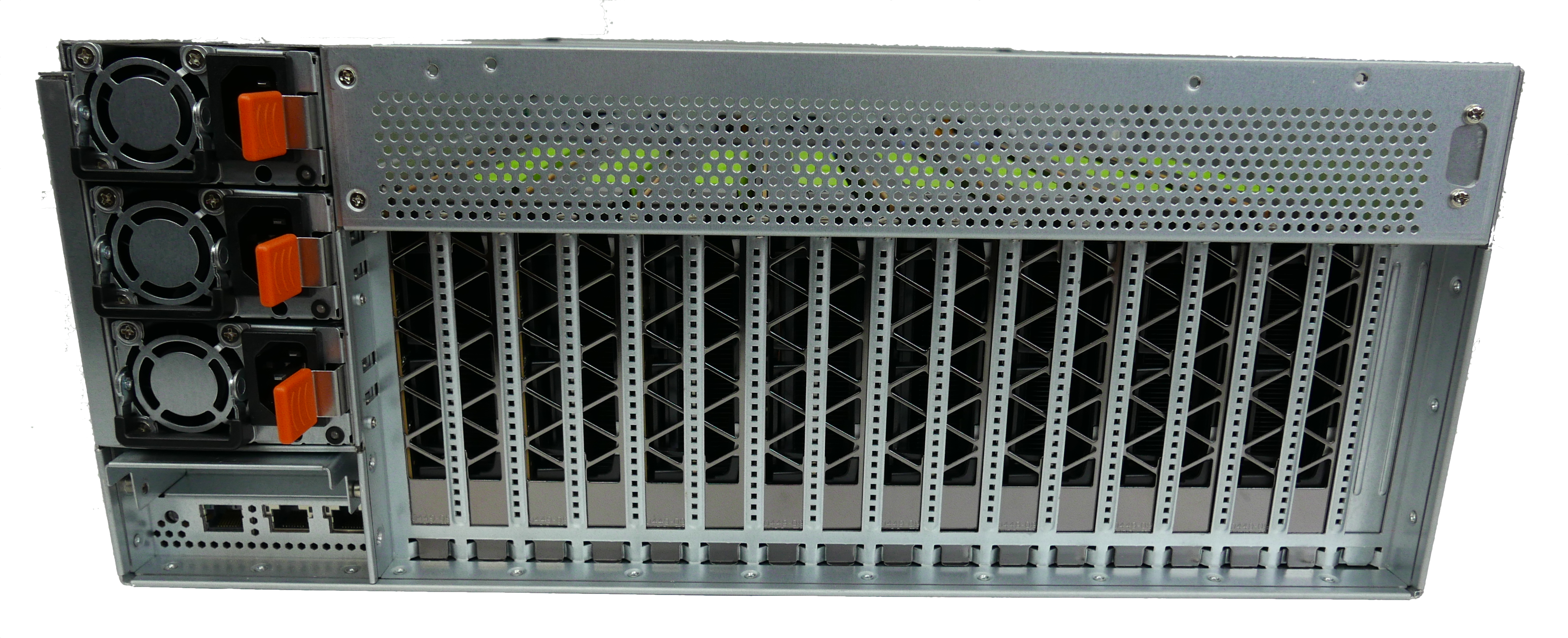

4U rackmount chassis with redundant power
Discounts are available for volume, education and government customers. Request a quote for product and pricing details.
Technical Specifications
In the box
- ACTserv system
- Documentation
Processor
- 2x Intel Xeon SP series processors
- Intel "Cascade Lake" microarchitecture
Chipset
- Intel C624 series
Memory
- 2933MHz DDR4 memory
- 24x DIMM sockets for support up to 1.5TB
Storage
- 14x 2.5" SATA drive bay for Hard Drive / SSD
Management
- Remote iKVM with in-band management
I/O Connections
- 1Gb Ethernet
- 10Gb Ethernet
- 40Gb Ethernet
- InfiniBand
- Omni-Path
Electrical requirements
- 2+1 Redundant 80+
Size & Weight
- Height: 7 inches (4U)
- Width: 17 inches
- Depth: 31 inches
- Weight: Base config 80 lbs.; varies based on configuration
Operating System
- RedHat Linux 6 and newer (most other distributions supported, call for details)
