CPU
2x up to 86 core Intel Xeon 6 (Granite Rapids SP/Sierra Forest SP)
-
MEMORY

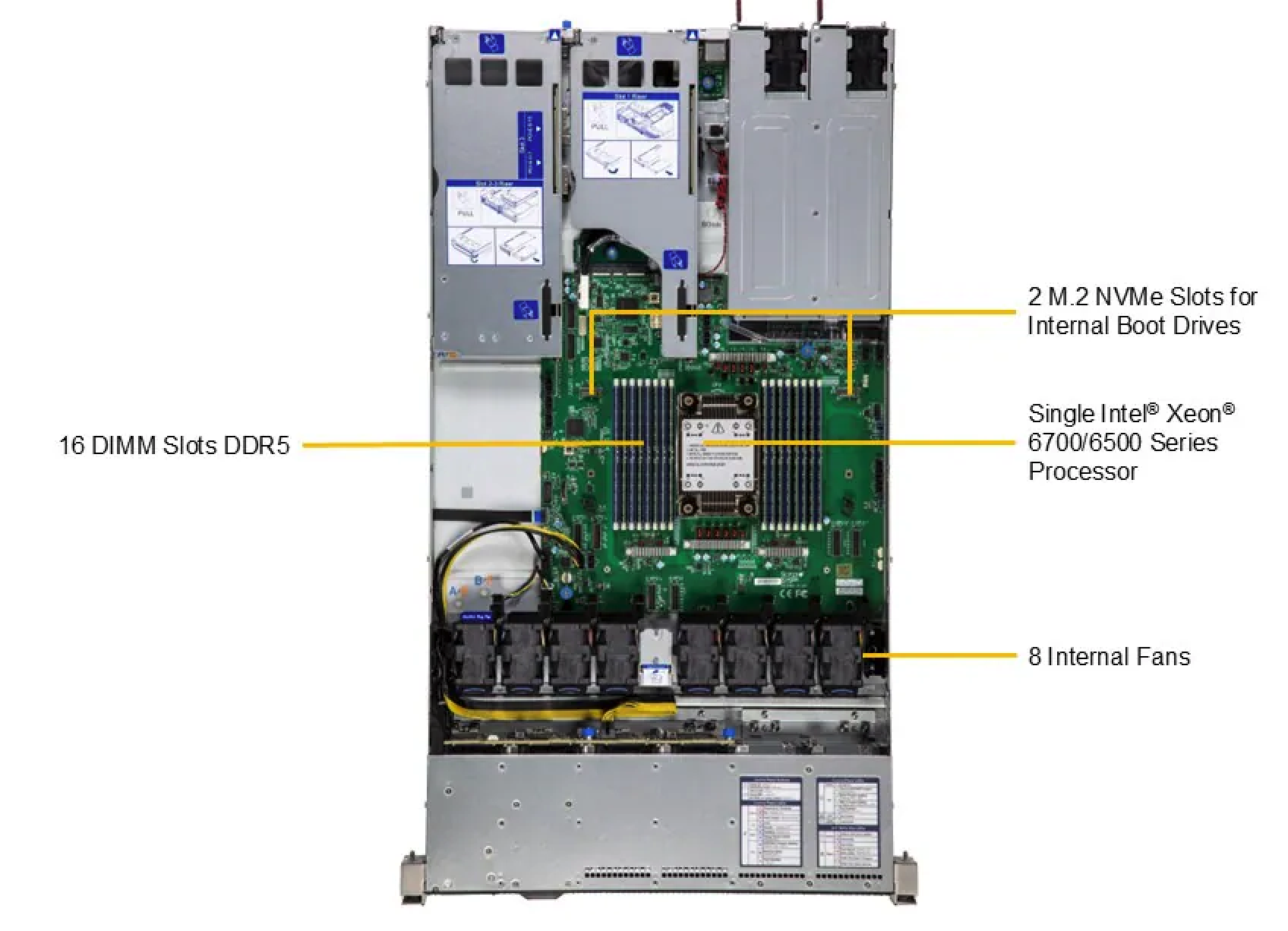

16x DDR5 6400MHz DIMM sockets (Max: 2 TB)
-
STORAGE

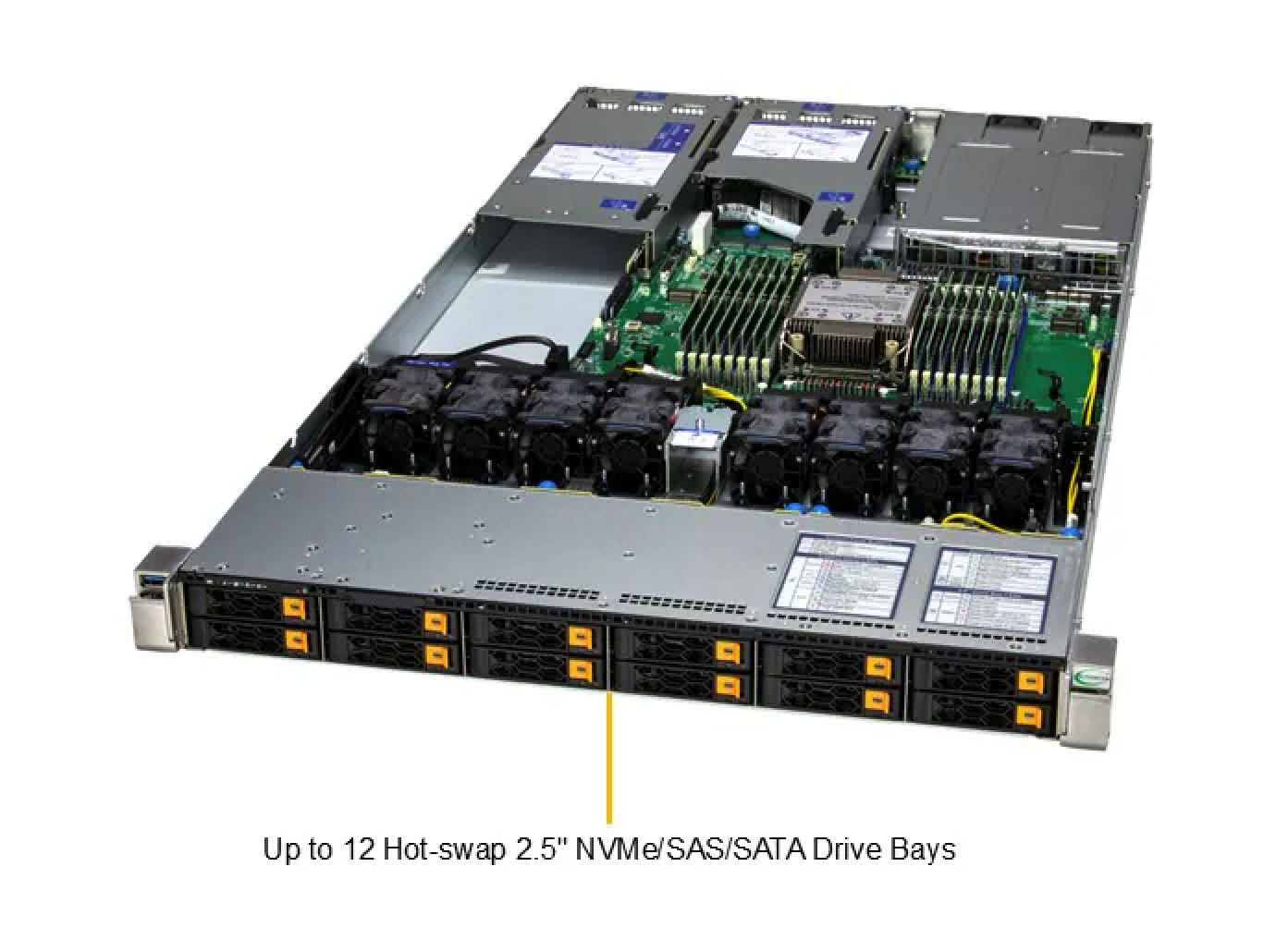

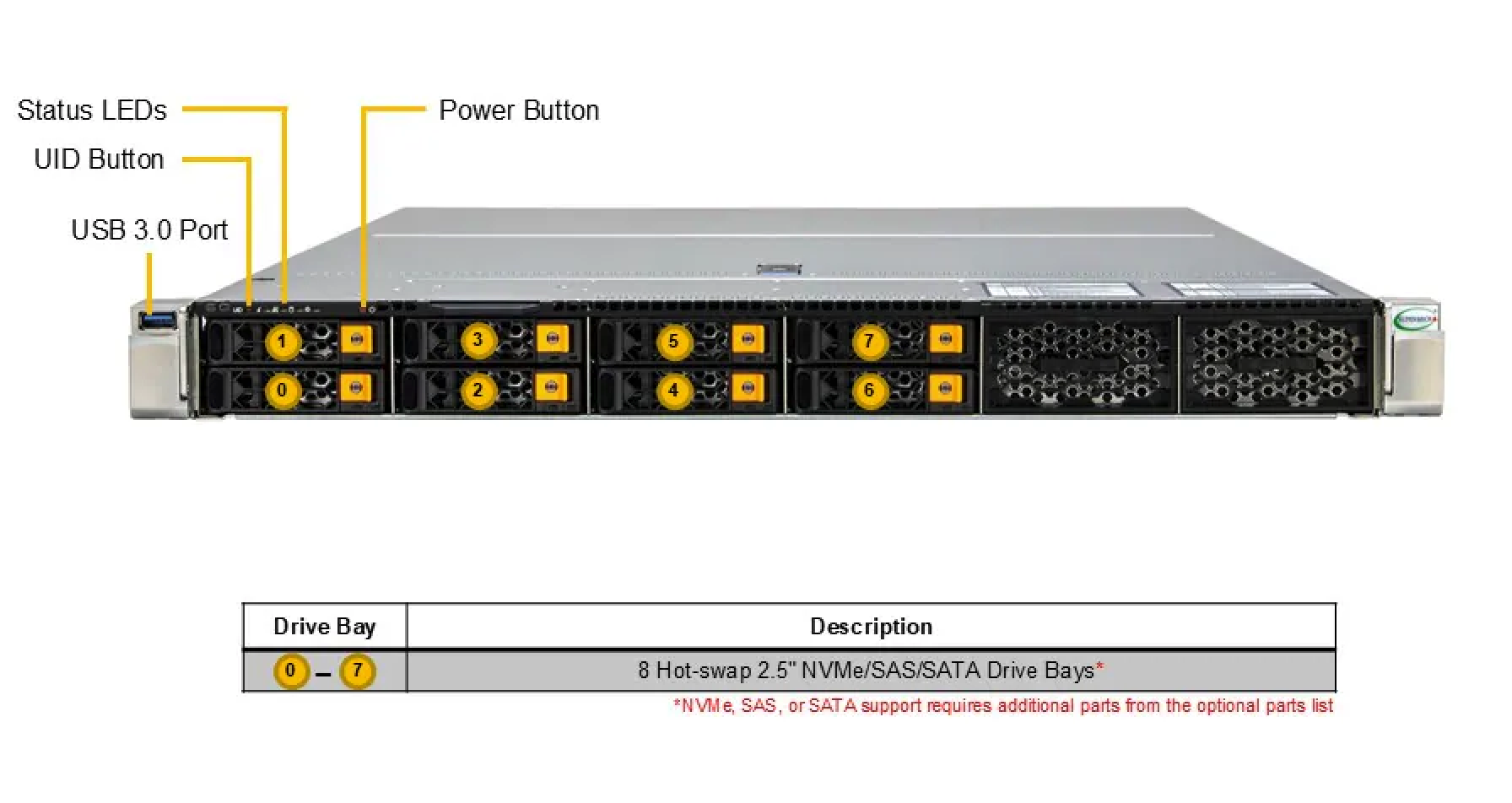

12x 2.5" NVMe drive bays (Max: 500 TB)
-
DENSITY
1U rackmount chassis with redundant power
Discounts are available for volume, education and government customers. Request a quote for product and pricing details.
Technical Specifications
In the box
- ACTserv x1501 system
- Documentation
Processor
- 2x Intel Xeon 6 Granite Rapids/Sierra Forest SP series processors
Chipset
- System on chip
Memory
- 6400MHz DDR5 memory
- Up to 16x DIMM sockets
Storage
- 12x 2.5" U.2 NVMe drives
Management
- IPMI/iKVM with dedicated 1Gb RJ45 port
I/O Connections
- 3x PCIe Gen5 x16
- 2 USB ports
Electrical requirements
- 2x 1200W Redundant Power Module
Size & Weight
- Size: 1.75"H x 17.3"W x 29.27"D
- Gross Weight: 41 lbs
Operating System
- Red Hat Enterprise Linux 8.0 ( x64) or later
