CPU
1x up to 18 core Intel Xeon W (Skylake)
-
MEMORY
8x DDR4 2666MHz DIMM sockets (Max: 512 GB)
-
STORAGE
8x 3.5"SATA,NVMe drive bays (Max: 96 TB)
-
ACCELERATORS
Max 1x NVIDIA Quadro accelerators
-
CONNECTIVITY
Onboard 2x 1Gb NICs & Optional: 10GbE, 40GbE
-
DENSITY

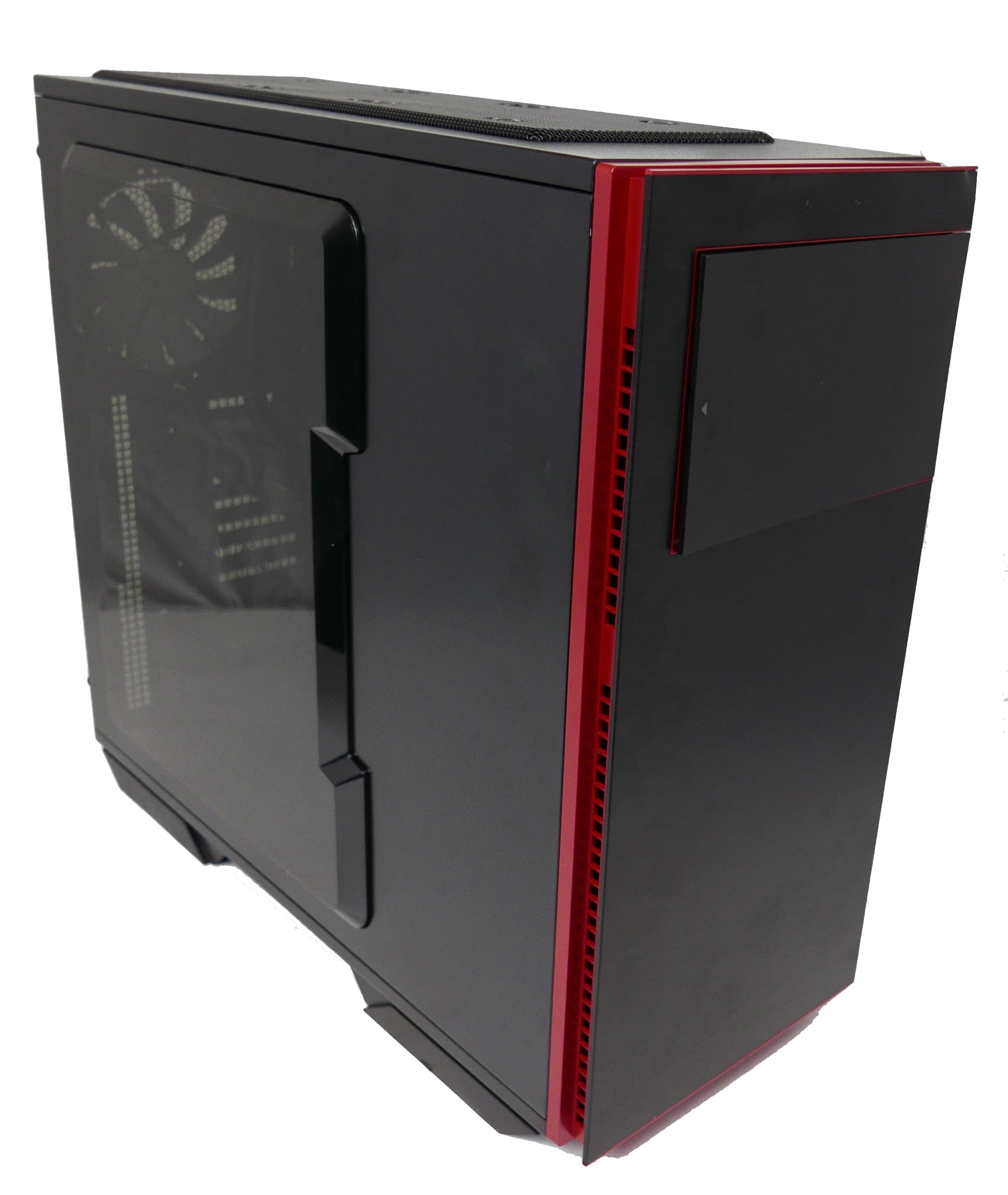

Desktop chassis
Discounts are available for volume, education and government customers. Request a quote for product and pricing details.
Technical Specifications
In the box
- Workstation system
- Optional keyboard and optical mouse
- 110V or 208V power cord
- Documentation
Processor
- Closed loop water cooling system for maximum performance and minimal noise
- Intel Quad Core Xeon W processor
- Intel "Skylake" microarchitecture
Accelerators
- NVIDIA Quadro GPU with PASCAL architecture
Chipset
- Intel C422
Memory
- 2666MHz DDR4 memory
- 8x DIMM sockets for support up to 512GB
Storage
- Up to 8x Enterprise level drives
Management
- Remote iKVM with dedicated management RJ45 ethernet
I/O Connections
- 2x independent 1Gb RJ-45 ethernet interfaces
- 4x USB 3.0, 2x USB 2.0
- 7.1-Channel High Definition Audio (analog and S/PDIF)
Electrical requirements
- High-efficiency power supply (greater than 80%)
- Output power: 850W
- Universal input voltage 100V to 240V
- Frequency: 50Hz to 60Hz, single phase
Size & Weight
- Height: 21.0 inches
- Width: 9.5 inches
- Depth: 22.9 inches
- Weight: Base config 40lbs, varies based on configuration
