CPU
2x up to 60 core Intel Xeon (Sapphire Rapids)
-
MEMORY
16x DDR5 4800MHz DIMM sockets (Max: 2 TB)
-
STORAGE
2x 2.5" & 2x M.2 NVMe drive bays (Max: 30 TB)
-
ACCELERATORS
Max 4x NVIDIA Tesla accelerators
-
CONNECTIVITY
Onboard 1x 10Gb NICs & Optional: InfiniBand, OmniPath, 50GbE/100GbE/200GbE
-
DENSITY
Compute Block rackmount chassis with redundant power
Discounts are available for volume, education and government customers. Request a quote for product and pricing details.
Additional node types
The Intel Xeon Sapphire Rapids ACTblade family consists of other node types including air and liquid cooled compute, storage, and management nodes

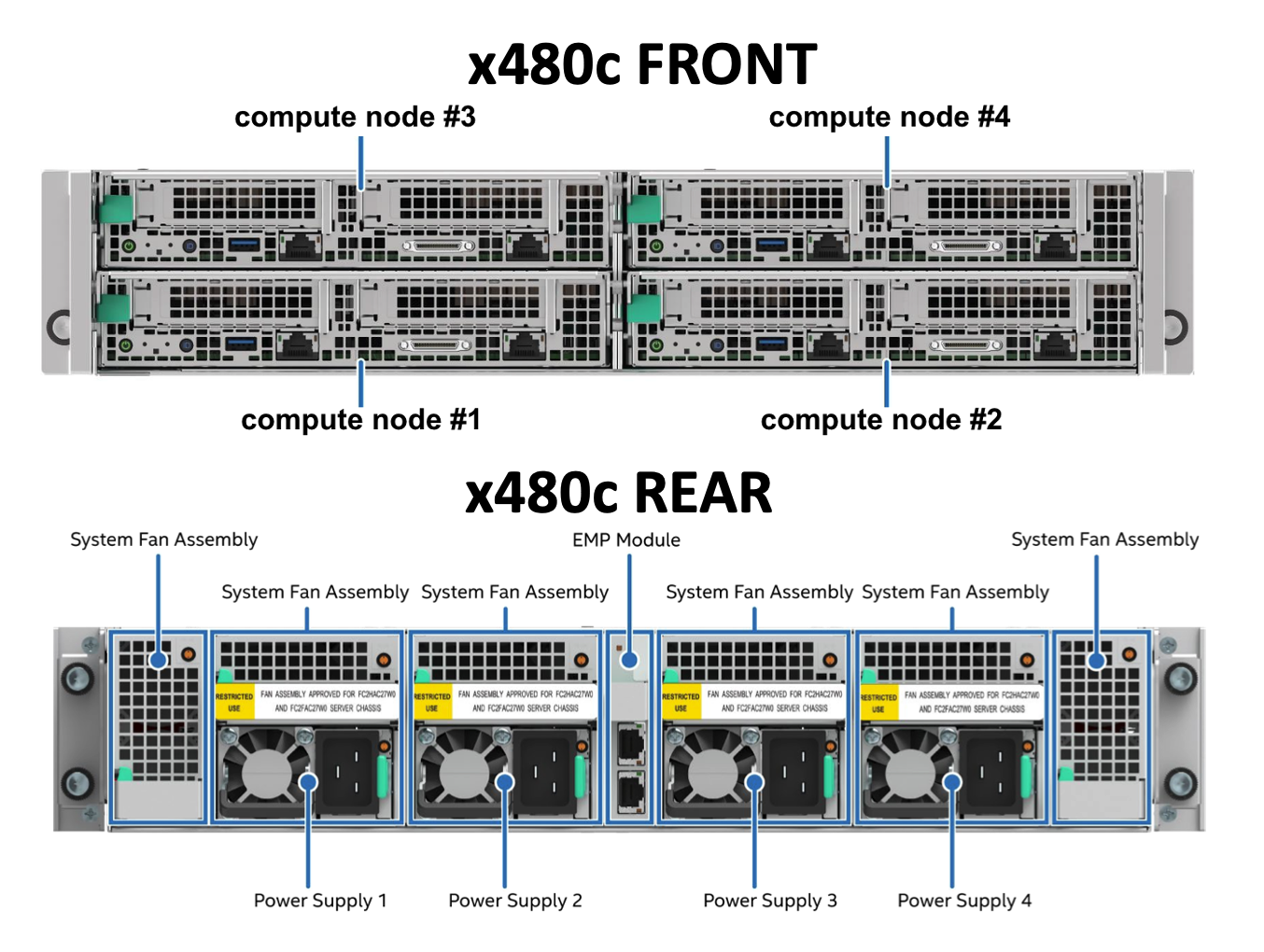

Technical Specifications
In the box
- ACTblade x480c system
- Documentation
Processor
- 2x 4th generation Intel Xeon series processors
- Intel "Sapphire Rapids" microarchitecture
Accelerators
- Up to 4x Dual width dual height Accelerators or GPUs (i.e. NVIDIA Tesla)
Chipset
- Intel C621A series
Memory
- 4800MHz DDR4 Memory
- 16x DIMM sockets for support up to 2TB
Storage
- 2x 110mm M.2 SATA/NVMe SSDs
- 2x U.2 2.5" NVMe SSDs
Management
- Integrated IPMI 2.0 module
- Integrated management controller providing iKVM and remote disk emulation
I/O Connections
- 4x open PCI-e 4.0 expansion slot running at 16x
- 4x open PCI-e 4.0 dual slot accelerator/GPU slots running at 16x
- 1x independent 10Gb RJ-45 ethernet interfaces
- 1x USB port
- Via management dongle: 2x USB ports, 1x VGA, 1x DB9 serial
Electrical requirements
- High-efficiency power supply (greater than 90%)
- Output power: 3x 1600W
- Universal input voltage 100V to 240V
- Frequency: 50Hz to 60Hz, single phase
Operating System
- RedHat Linux 8 and newer (many other distributions supported, call for details)
