CPU per node
2x up to 60 core Intel Xeon (Sapphire Rapids)
-
MEMORY per node
16x DDR5 4800MHz DIMM sockets (Max: 2 TB)
-
STORAGE per node
1x M.2 SSD drive bays (Max: 2 TB)
-
CONNECTIVITY per node
Onboard 1x 10Gb NICs & Optional: InfiniBand, OmniPath, 50GbE/100GbE/200GbE
-
DENSITY
Compute Block multi-node rackmount chassis with redundant power
Additional node types
The Intel Xeon Sapphire Rapids ACTblade family consists of other node types including liquid cooled, accelerator, storage, and management nodes
Technical Specifications

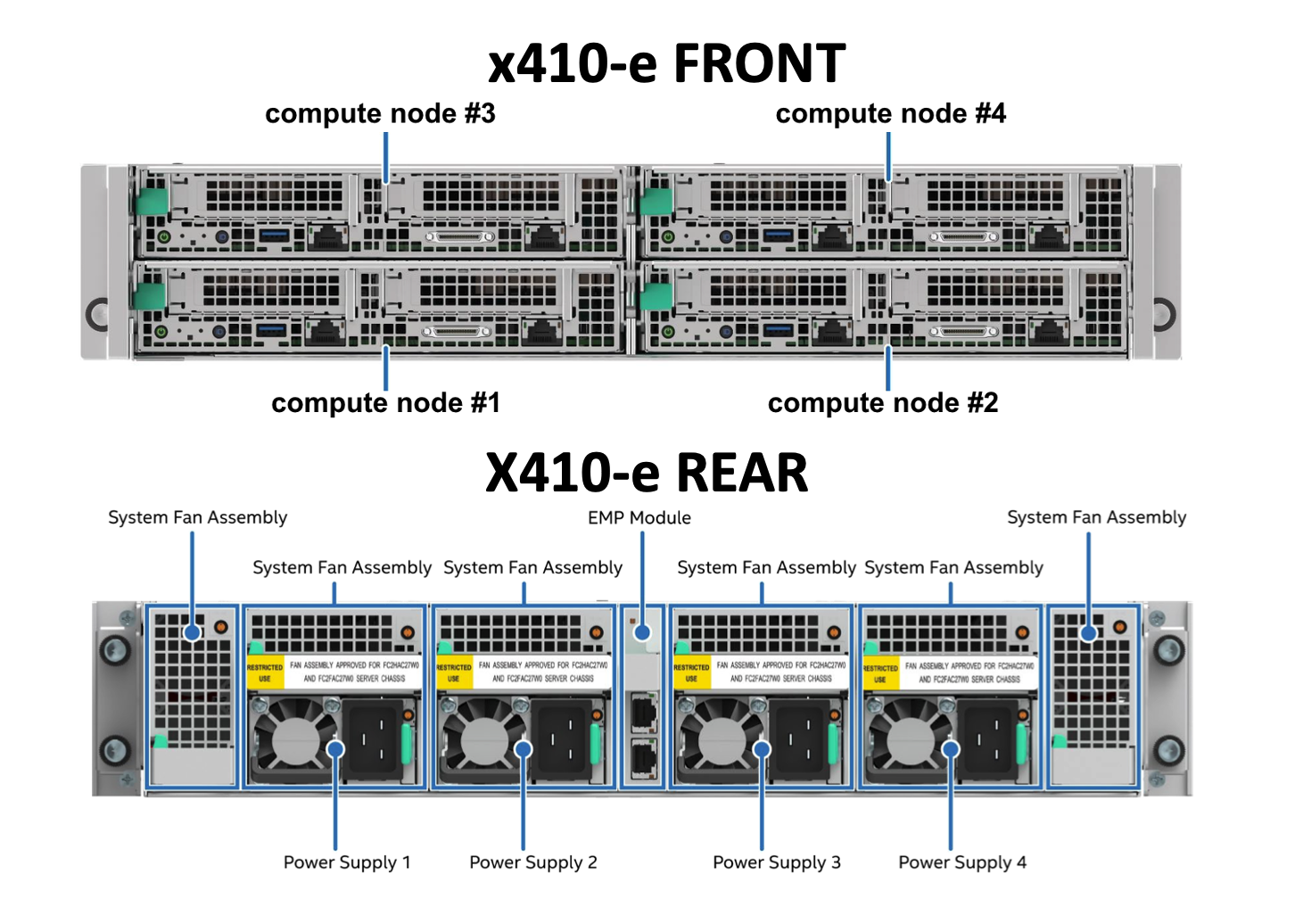

- ACTblade x410e system
- Documentation
- 2x 4th generation Intel Xeon series processors
- Intel "Sapphire Rapids" microarchitecture
- Intel C621A series
- 4800MHz DDR4 Mmemory
- 16x DIMM sockets for support up to 2TB
- 2x 110mm M.2 SATA/NVMe SSDs
- Integrated IPMI 2.0 module
- Integrated management controller providing iKVM and remote disk emulation
- 2x open PCI-e 4.0 expansion slot running at 16x
- 1x independent 10Gb RJ-45 ethernet interfaces
- 1x USB port
- Via management dongle: 2x USB ports, 1x VGA, 1x DB9 serial
- High-efficiency power supply (greater than 90%)
- Output power: 3x 2130W
- Universal input voltage 100V to 240V
- Frequency: 50Hz to 60Hz, single phase
- RedHat Linux 8 and newer (many other distributions supported, call for details)
